  4-STAR PRIMARY ROLLER CLUTCH Order Form   Print   Page Back Page Next
The Roller Revolution Takes Another Leap Into The Future !!!

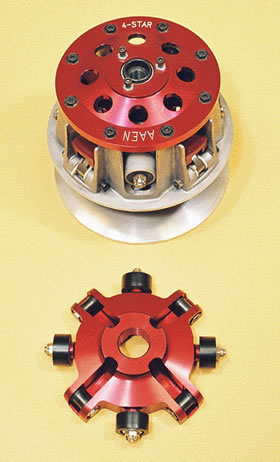

4 Star Roller Clutch

bullet Rollers eliminate button friction
bullet Super-smooth engagement
bullet Quicker and smoother backshifts
bullet Adjustable engagement speed billet cover
This radical invention takes you in to the future now. Sliding friction is eliminated by replacing the sliding buttons with rollers. The 4-Star clutch has four machined roller passages. The four rollers are mounted on a special billet spider designed to run in the roller passages. Smooth clutch engagement, instant speed changes, higher efficiency, less belt wear and cooler running belts are the rewards. The billet cover incorporates an adjustable engagement speed mechanism.
Parts DescriptionsPart No.Price
Billet Cover w/Adjustable Engagement SpeedCCP2000$169.00
Roller with BearingCCP2001$15.00
Ball BearingCCP2002$15.00
Flyweight Roller Pin w/FastenerCCP2003$12.00
Mounting Bolt w/Castle NutCCP2006$4.00
Spider (Billet only)CCP2011$285.00
Complete Billet Spider AssemblyCCP2010$385.00
Movable SheaveCCP2012$125.00
Weights and Springs sold separately    ( see clutch parts )
ModelPart No.Price
Arctic Thunder Cat, ZR, ZRT, WildcatCCP3002-600$949.00
Arctic 33mm Taper (ZR 800-900)CCP3002-610$949.00
Arctic 33mm Taper (F7)CCP3002-612$949.00
All PolarisCCP3002-600$949.00
All Yamaha models '93 and upCCP3002-600$949.00
Yamaha V Max 4CCP3002-605$949.00
YAMAHAYVX "Roller Action" Secondary Clutch Kit
*HELIX CAM CHART
ModelPart No.Price
46° CamYCP12095$115.00
48° CamYCP12103$115.00
50° CamYCP12096$115.00
52-48° CamYCP12074$115.00
54-46° CamYCP12098$115.00
56-44° CamYCP12099$115.00
Helix Clutch

bullet Faster acceleration
bullet Cooler running belts and less belt wear
bullet Uses the original YVX secondary clutch
bullet Uses hardened steel cam and steel needle rollers to give superior reaction

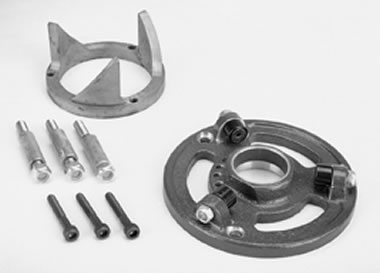

The kit consists of a hardened steel cam, a "Roller Action" cover with cam follower needle bearings, a hardware kit and a spring. We now also offer the Adjustable Spring Tensioner for quick pretension adjustment.
To install the kit, the movable sheave has to be machined to remove the button towers and provide a mounting surface for the cam. This is a very simple machining procedure that can be done by anyone with a lathe. Complete machining instructions are included in the kit. We also offer complete machining and set-up of your clutch with our "Roller Action" kit. Send us your secondary clutch. Quick turn around!
Parts DescriptionsPart No.Price
Machining and Set-UpLBR12073$50.00
Yamaha YVX Roller Action CoverYCP12102$205.00
Yamaha YVX Roller Kit$319.00
Hardware KitYCP12072$15.00
Roller Action Cover w/Spring AdjusterYCP12110$429.00
AAEN Brown Secondary SpringAAS12416$25.00
Spare Bushing, Roller Cover OnlyACP12721$12.00
Spare Bushing, Adjuster CoverACP12784$11.00
Cam Spacer Plate (.100"  Thick)ACP0148237$7.50
*See Chart For Helix Cam Selection
